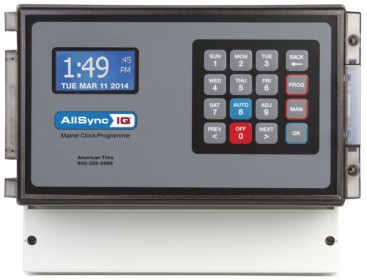

AllSync IQ Master Clock Controller
Remotely manage all your equipment from the convenience of your computer and control major brand systems with the AllSync IQ Wired Master Clock. It's the perfect replacement for a failing master clock and works with your existing secondary clocks. The AllSync IQ Wired Master Clock provides synchronized control of secondary clocks, bell signals and electrical circuits. Programming up to 99 schedules and 9,999 events is easy with the 16-button keypad or Remote Connect web interface. You'll never need to adjust for time changes, because the AllSync IQ Wired Master Clock automatically adjusts for Daylight Saving Time and Leap Year. Plus, the battery backup keeps time without external power and retains programmed data.
Features
Features:
- 5 Year Warranty
- UL Listed
- Internal clock accuracy of ±1 minute per year
- Ethernet Time Synchronization
- Automatic Daylight Saving Time & Leap Year correction
- Control of up to 6 signal circuits
- 100% FCC compliant
- Field upgrades via USB flash drive
Specification
Specification:
- Input voltage: 120vac, 50/60 Hz
- Peak input power: 10 watts
- Nominal power: 5 watts
- Fuse (input power): 2.5 amps, 250vac, through hole (0.335 Diameter x 0.315" L)
- Standby timekeeping: 10 years
- Memory/Time backup: CR2032 lithium battery, 240 mAh capacity
- Timekeeping accuracy: ±1 minute/year without correction from Ethernet time reference
- Program retention: Unlimited
- Programmable events: 9,999 events total
- Schedules: 99 maximum
- Signal duration: Programmable 1-9 seconds or continuous On
- UL Listed: File #E157522
- Optional clock circuits (1): Dry contacts rated at 250vac, 8 amps resistive, 5 amps inductive
- Clock circuit fuses (2): 8 amps, 250vac, subminiature
- Optional signal circuits (6): Dry contacts rated at 250vac, Continuous: 7.5 amps resistive, 5 amps inductive
- Physical dimensions: 61/2"h x 11"w x 81/2"d
- Temperature range: 32˚-140˚F (0˚-60˚C)
- Mounting: Wall mount or rack mount (with rack mount bracket H002944)
- Communication: Ethernet
- Shipping weight: 4 lbs.
- Display: 128 x 64 graphics LCD
- Keypad: 16 button tactile feedback membrane switch
